Shear Connector Stud Manufacturer in India
Shear connector studs — also called shear studs, headed studs or shear stud connectors — are welded to the top flange of a steel beam or girder and cast into the concrete slab above it. They carry the horizontal shear between steel and concrete, so the beam and slab act as one composite member instead of sliding over each other.
S.R. Forgings manufactures headed shear connector studs at Focal Point, Ludhiana, to ISO 13918 and to customer drawing. Diameters run from 13 mm up to 1¼ inch (31.75 mm) and lengths up to 1016 mm (40 inch), which is longer than most suppliers hold as standard. Ceramic ferrules are supplied with the studs. Our shear stud production capacity is 150 tonnes a month.

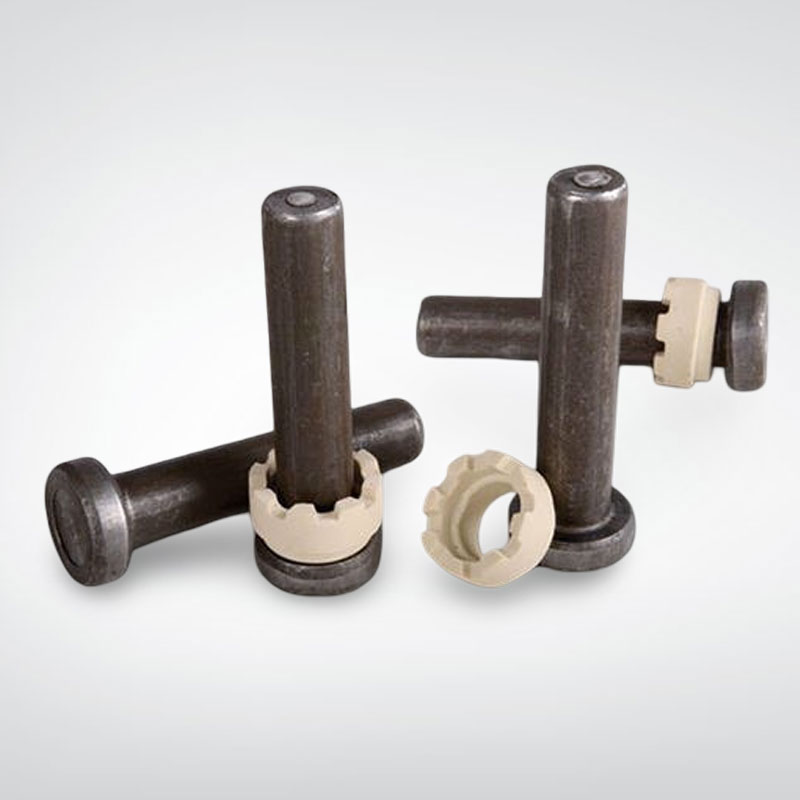

Shear Connector Studs
Headed shear studs to ISO 13918 in the standard diameters, plus custom studs made to drawing: 13 mm to 1¼ inch, lengths up to 1016 mm, ceramic ferrules supplied.

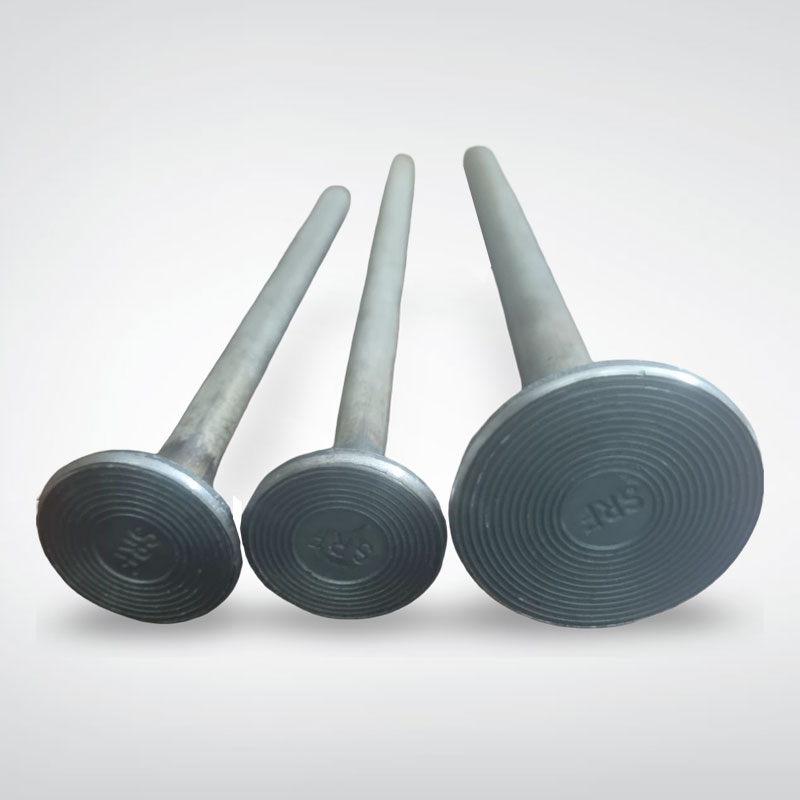

Punch Shear Resistance (PSR) Studs
Large headed studs welded to flat steel rails, used as punching shear reinforcement in flat slabs around columns in place of stirrups and column capitals. PSR studs made in Ludhiana are supplied to the United States.
Shear Connector Studs at a Glance
| Product | Headed shear connector stud (shear stud) |
|---|---|
| Standard | ISO 13918, or customer drawing |
| Diameter | 13 mm to 1¼ inch (31.75 mm), metric and inch sizes |
| Length | Up to 1016 mm (40 inch) |
| Material | Low carbon steel: SAE 1010 for smaller diameters, SAE 1018 for larger diameters |
| Ferrules | Ceramic ferrules supplied with the studs |
| Welding | Drawn-arc stud welding, direct to the flange or through profiled steel decking |
| Production capacity | 150 tonnes a month |
| Also made | PSR studs and stud rails; ISO 13918 weld studs types PD, RD and UD, M10 to M24 |
For head diameters, head heights and minimum lengths size by size, see the shear stud size chart.
Standard or Custom Shear Studs
Most composite floors and bridge decks use studs straight from the ISO 13918 tables. Some designs do not — deep slabs, thick haunches, heavy bridge decks and replacement work on older structures often call for a size the tables do not cover. We make both.
| Standard shear studs | Custom shear studs | |
|---|---|---|
| Made to | ISO 13918 tables | Your drawing |
| Diameter | The ISO 13918 diameters | Any diameter from 13 mm to 1¼ inch, metric or inch |
| Length | Standard lengths per the tables | Longer or intermediate lengths, up to 1016 mm |
| Head | Standard head per the tables | Head dimensions to drawing |
| Typical use | Composite floor beams, through-deck welding, most bridge decks | Deep slabs, heavy bridge decks, matching studs on existing structures |
Where Shear Connector Studs Are Used
Shear connector studs are used wherever a steel frame is made to act compositely with concrete. Because the studs transfer the horizontal shear between the two materials, the steel and concrete work as a single structural member, allowing shallower beams and longer spans than either could achieve alone.
- Composite floor beams in multi-storey buildings, data centres and industrial structures — usually welded through profiled metal decking onto the top flange before the slab is poured.
- Composite bridge decks — welded directly to the top flange of plate girders and box girders.
- Steel-concrete composite columns and encased sections.
- Flat slabs — where the job is punching shear around a column rather than composite action, the answer is PSR studs on rails. See shear connector studs vs PSR studs.
Why Engineers Specify Headed Shear Studs
- Lighter steelwork. Composite action lets a smaller beam carry the same load, or the same beam span further.
- Known capacity per stud. The design resistance of a headed stud is set out in EN 1994 and AISC 360, so the number of studs follows directly from the design. See shear stud capacity in kN.
- Fast to install. Each stud is drawn-arc welded with a stud welding gun and a ceramic ferrule in a single short cycle, and can be welded through galvanised decking.
- Checked on site. Welds are checked by visual inspection of the weld collar and a bend test on sample studs, so a poor weld is found before the concrete goes in.
How to Order Shear Connector Studs
Put these on your enquiry and we can quote without coming back to you:
- Diameter — in mm or inch.
- Length — and whether it is the length before or after welding. Studs lose a few millimetres in burn-off, and drawings differ on which figure they give.
- Standard — ISO 13918, or attach your drawing for custom studs.
- Quantity — in pieces, for each size.
- Welding method — direct to the flange or through profiled decking, so the right ferrules go with the studs.
- Delivery — site location in India, or destination port for export.
To work out stud weight per consignment, or how many studs a beam layout needs, use the shear stud weight and quantity calculator.
Shear Stud Technical Guides
- Shear stud size chartSizes, head dimensions and how to specify studs on a drawing
- Shear stud capacityDesign resistance per stud in kN, to EN 1994 and AISC 360
- Shear studs vs PSR studsWhich one your slab needs, and why
- Weld stud types PD, RD, UD and SDThreaded weld studs and shear studs under ISO 13918
- Shear studs in composite constructionHow composite action works and how studs are welded
- En españolConectores de cortante ISO 13918
Questions Buyers Ask
Are shear studs and shear connectors the same thing?
Yes. Shear connector stud, shear stud, headed stud and shear stud connector all describe the same part: a round steel shank with a forged head, welded to a steel beam and cast into concrete. "Shear connector" on its own can also mean channel or angle connectors, which are a different product.
What is the largest shear stud you make?
Up to 1¼ inch (31.75 mm) diameter and up to 1016 mm (40 inch) long. Sizes outside the ISO 13918 tables are made to your drawing.
What steel are your shear studs made from?
Low carbon steel: SAE 1010 for smaller diameters and SAE 1018 for larger diameters. Low carbon is deliberate — the stud has to weld to the beam flange in under a second without the weld zone hardening and cracking. A shear stud is not a high tensile part and should never be replaced with an 8.8 or 10.9 bolt of the same diameter.
Do you supply ceramic ferrules with the studs?
Yes. Ceramic ferrules are supplied with the studs. Tell us whether the studs will be welded directly to the flange or through decking.
How many shear studs can you supply?
Our shear stud production capacity is 150 tonnes a month. Send your quantities and required dates and we will confirm a delivery schedule with the quotation.
Do you export shear connector studs?
Yes. We quote for export, and PSR studs made at our Ludhiana works are already in service in the United States. Give us the destination port with your enquiry.
Send Your Shear Stud Requirement
Diameter, length, quantity and standard or drawing is all we need to quote. Many buyers find WhatsApp the quickest way.
